KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400

Name: KWh Class 05 Three Phase Din Rail Energy Meter ADL400
Brand: Acrel
Price: 15 USD

Buy cheap KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400 product

Brand Name : Acrel

Model Number : ADL400

Certification : ISO/CE

Place of Origin : Jiangsu, China

MOQ : 1

Price : USD+15-80+pcs

Payment Terms : L/C, T/T

Supply Ability : 6000000+pcs+per year

Delivery Time : 5-8 work days

Packaging Details : 48*45.5*20

Phase : 3

Accuracy Class : 0.5S

Communication : RS485(MODBUS-RTU)

Display : LCD

Contact Now

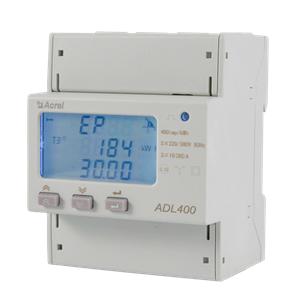

ADL400 din rail energy meter

● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

● U,I,P,Q,S,PF,kWh,kvarh

● RS485(MODBUS-RTU)

● LCD display

● kWh Class 0.5S,kVarh Class 2

Characteristic

KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400

Communication

Display

Rated U and I

RS485
(Modbus-RTU)

12 digits LCD display

U, I, P, Q, PF, kWh and other energy consumption

Power measure (999999.99kWh)

AC 3×100V, 3×380V, 3×57.7/100V

3×220/380V; 3×1(6)A, 3×10(80)A

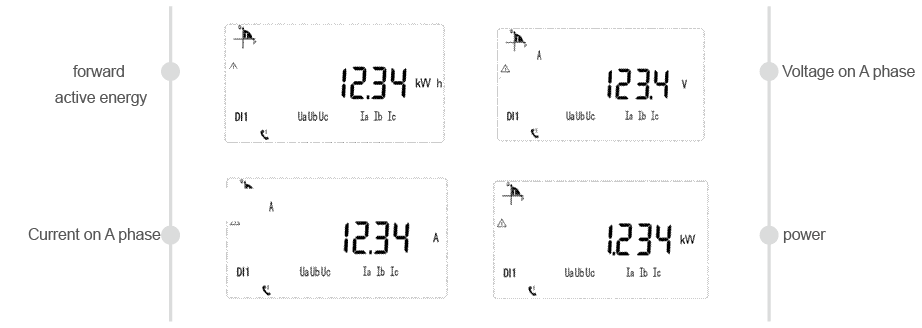

LCD Display

KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400

Function

Accuracy

kWh: Class 0.5S,kVarh:Class 2

Frequency

50/60HZ(Optional),range: 45~65HZ

Pulse output

Pulse output kWh/kvarh

Consumption

<1VA(Single phase)

Installation

DIN 35mm

Dimension(L*W*H)

90*72*65mm

Switch relay

Magnetic latching relay(ADL3000-E build-in)

Clock

≤0.5s/d

Starting current

Direct connect: 0.01

Connect via CT: 0.001

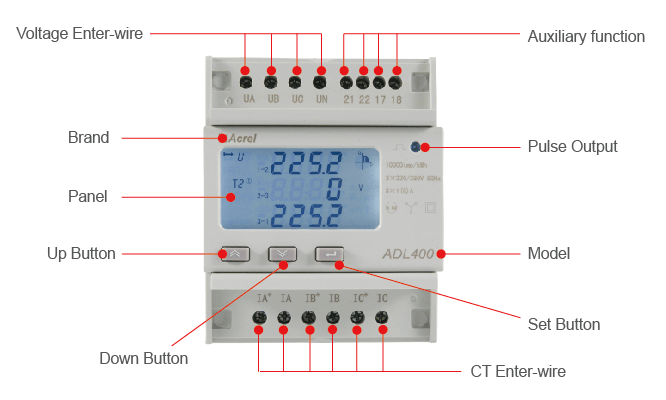

Wiring

KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400

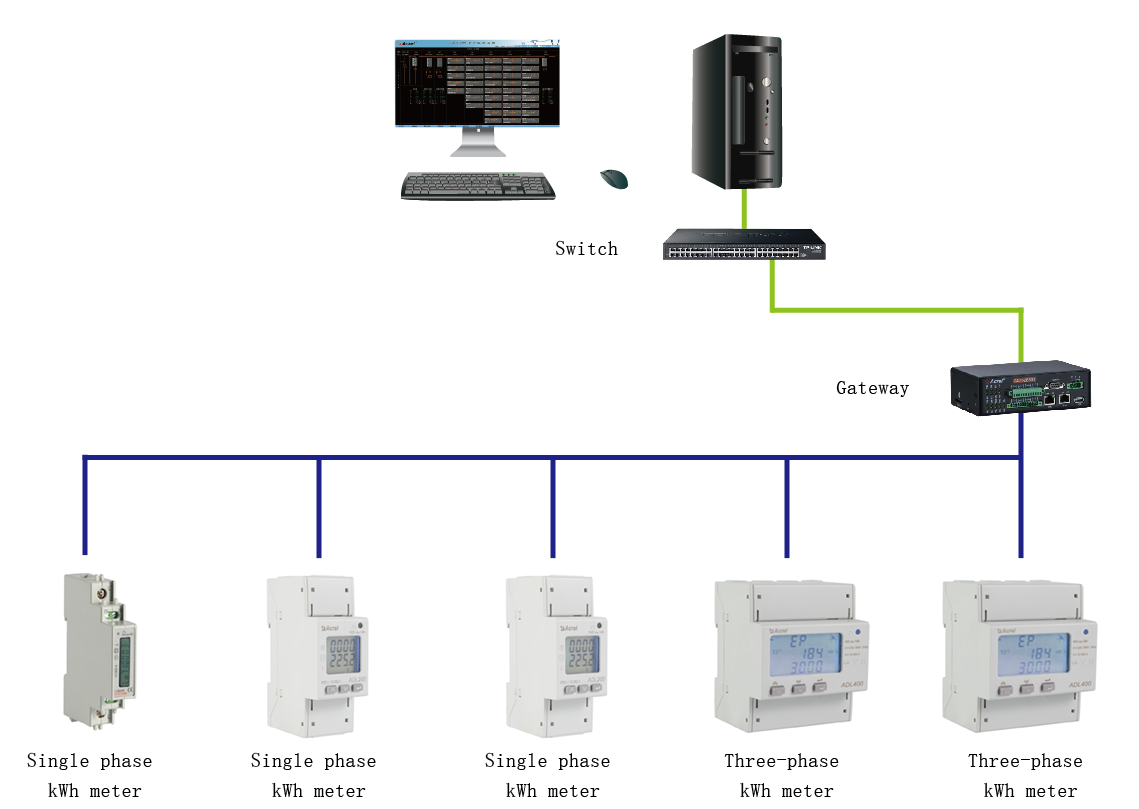

Typical connection

KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400

Parameters

KWh Class 0.5 Three Phase Din Rail Energy Meter ADL400
