48 channels Single Phase Energy Monitoring Device For IDC AMC16-FDK48

Name: 48 channels Single Phase Energy Monitoring Device For IDC AMC16FDK48
Brand: Acrel
Price: 186.20 USD

Buy cheap 48 channels Single Phase Energy Monitoring Device For IDC AMC16-FDK48 product

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : AMC16Z-FDK48

MOQ : 1 Piece

Price : $186.20 / Piece

Display Type : none

Phase : Three Phase

Measuring Energy Range : 0-999999.99Kwh

Accuracy Class : Class 1

Output Voltage : 250V AC/30VDC

Operating Temperature : -15℃~55℃

Dimensions : 180mm*94.3mm*75mm

Interface and communication : RS485, Modbus-RTU

Measuring channels : 48 channels

Selling Units : Single item

Single package size : 18X9.43X7.5 cm

Single gross weight : 2.000 kg

Package Type : It was packed in carton box, suitable for long way transportation.

Contact Now

Products Description

48 channels Single Phase Energy Monitoring Device For IDC AMC16-FDK48

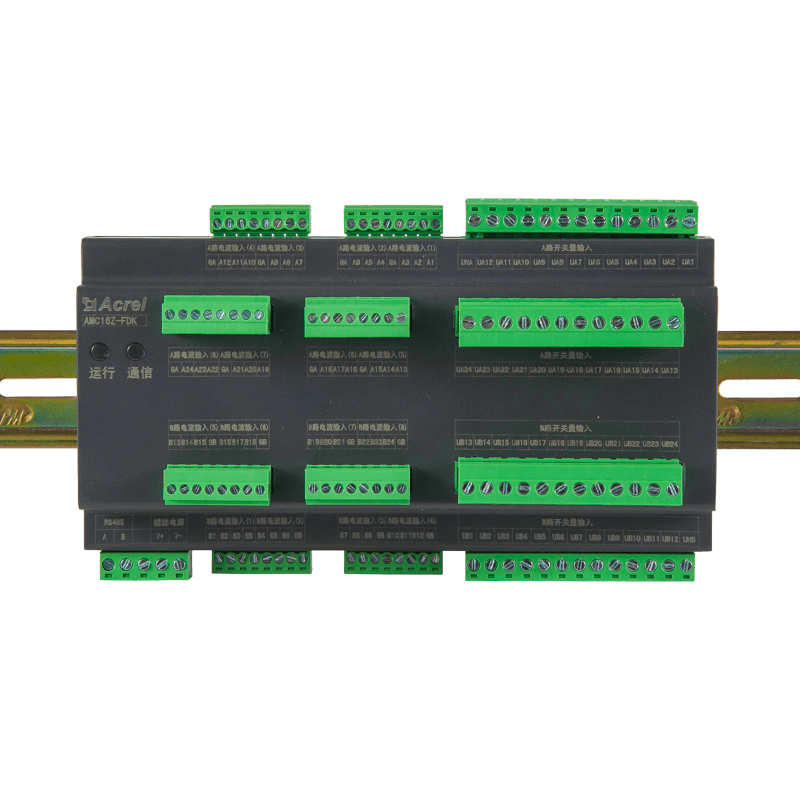

AMC16Z-FDK48 Data Center Monitor Device

● Designed specifically for the power supply management of server in the data center
● A+B independent 24 circuits(48 in total)
● kWh Class 0.5
● DIN 35 mm

Function

• 24 channels of each circuit of A+B independent 2 circuits the outgoing current, active power, active power, reactive power

• 1 RS485 communication

Installation:
DIN rail 35mm

Dimension(L*W*H):
180*94.3*75mm

Reference voltage			220V
Voltage Accuracy			Class 0.2
Incoming line current			50mA
Current Accuracy			Class 0.5
Working power			DC12V/3W
Frequency			45~65Hz
Temperature			-15℃~55℃
Energy			0.5
Interface and communication			RS485, Modbus RTU
Humidity			≤95%(No condensation)
Auxiliary power supply			DC12~24V

Wiring

Typical connection
