Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor

Brand Name : Acrel

Model Number : ADL400

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T

Supply Ability : 5000pc/day

Delivery Time : 2-3 work day

Packaging Details : carton

Type : din rail energy meter

Communication : RS485 Port MODBUS-RTU Protocol

Accuracy : class 0.5S

Rated current : 10(80)A,1(6)A

Rated voltage : AC 230V/400V/690V

Contact Now



Technical parameter:



Project Performance parameter
Specification 3 phase 3wires, 3 phase 4wires
Measurement Voltage Reference voltage 3
Consumption <10VA(Single phase)
Impedance >2MΩ
Accuracy class Error±0.2%
Current Input current 3×1(6)A, 3×10(80)A
Consumption <1VA Single phase rated current
Accuracy class Error±0.2%
Power Active, reactive, apparent power, error±0.5%
Frequency 45~65Hz, Error±0.2%
Metering Energy Active energy(Accuracy class: 0.5) reactive energy(Accuracy class:2)
Clock ≤0.5s/d
Digitsignal Energy pulse output 1 active photocoupler output
Pulse Width of pulse 80±20ms
Pulse constant 400imp/kWh, 10000imp/kWh(Correspond with the basic current)
Communication Interface and communication protocol RS485: Modbus RTU
Range of communication address ModbusRTU:1~247
Environment Working temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)

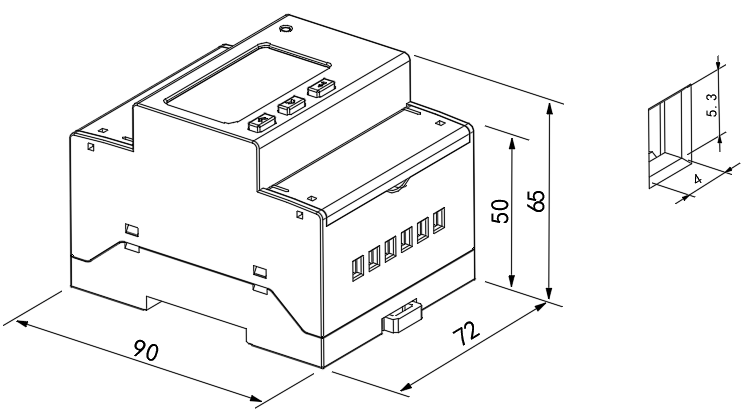

Dimensions:





Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor

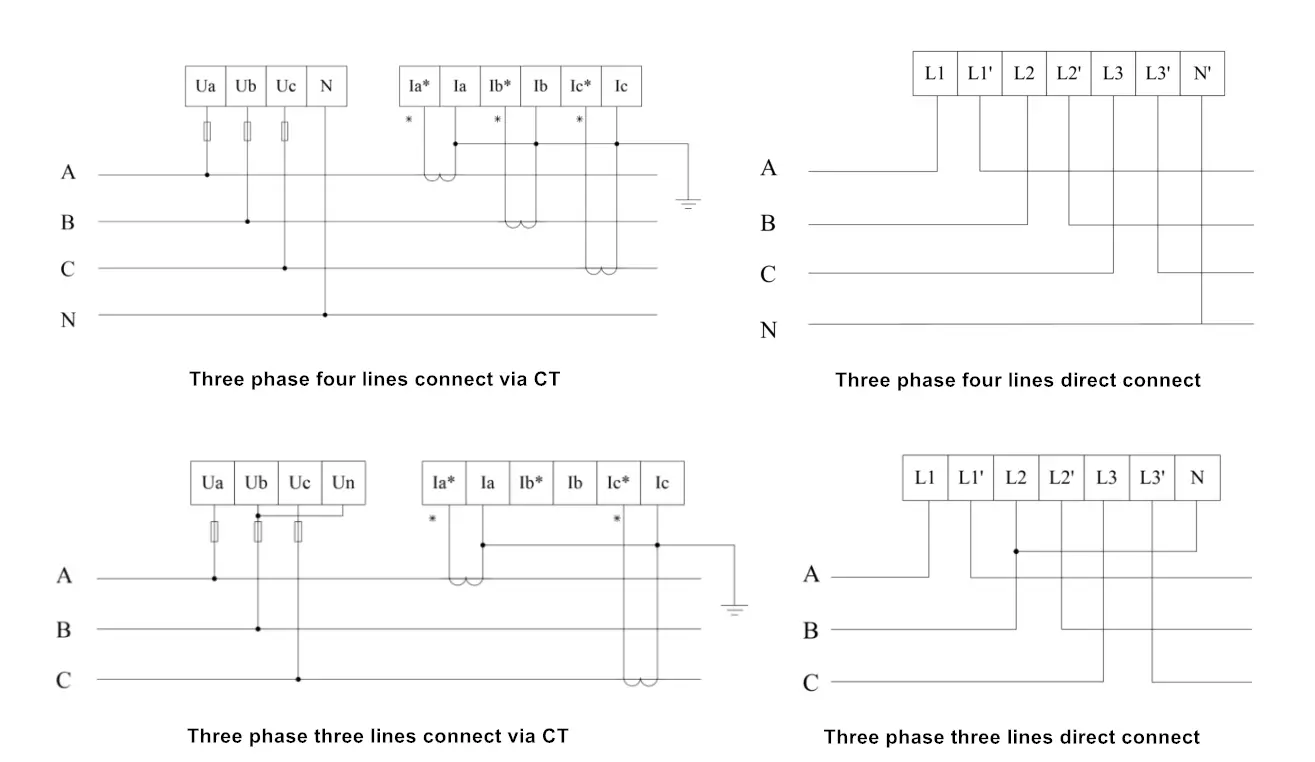

Wiring:





Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor

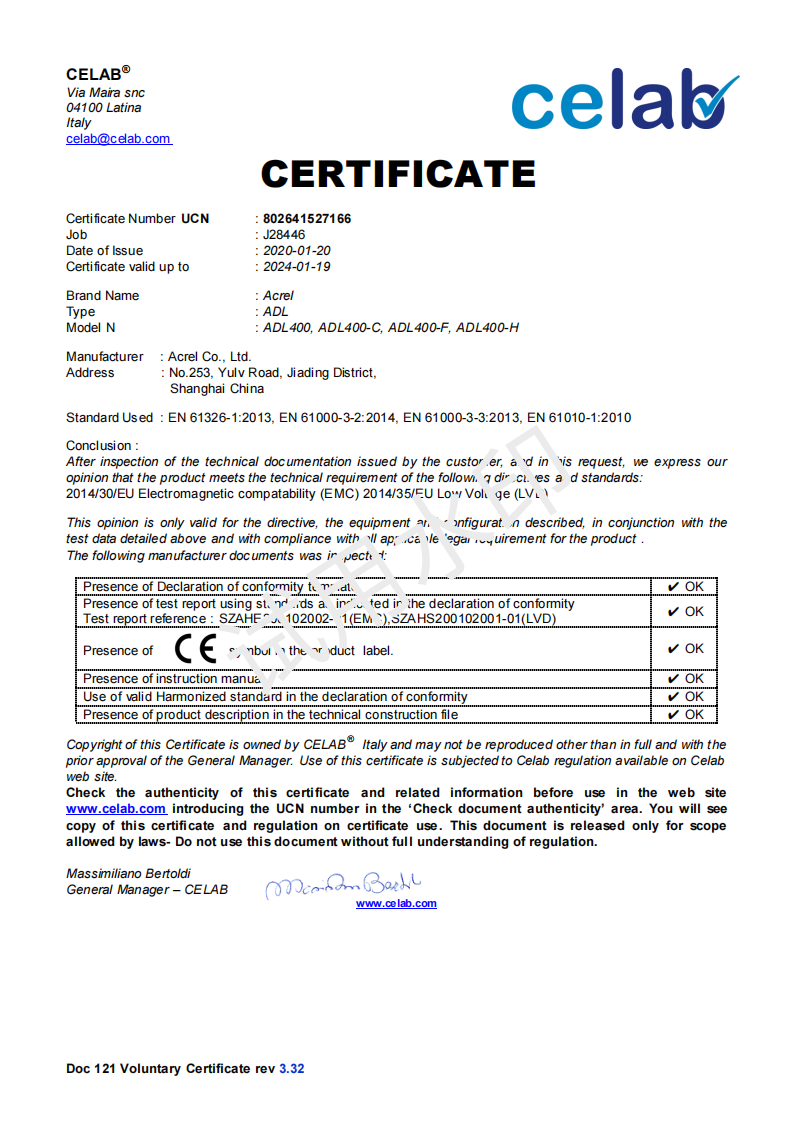

Certification:

Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor



Our Company:



Timeline:



Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor

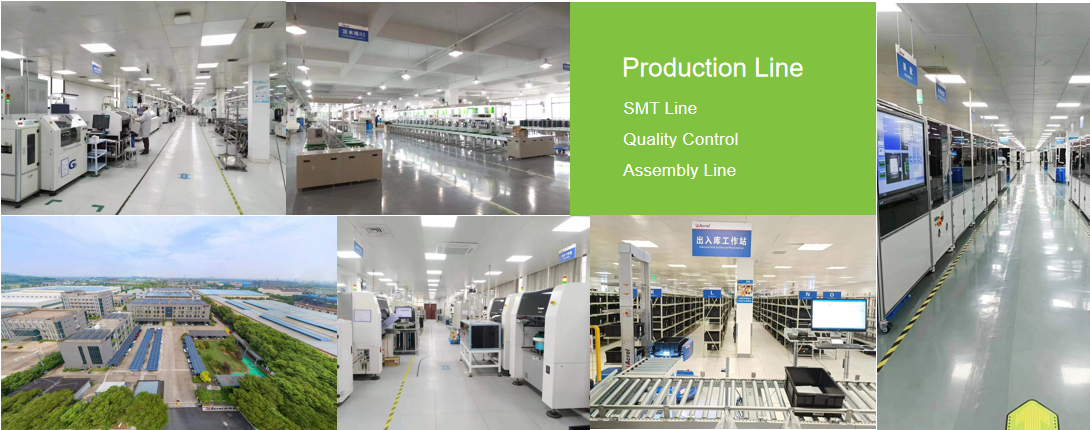

Factory:



Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor



Solutions:



Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor







Contact us:

Acrel ADL400 Din Type Energy Meter Measure Power Consumptionpower Meter 3 Phase Energy Usage Monitor
